Beam energy | ||
---|---|---|
          Injection | 1.0 GeV | |
          Stored beam | 1.0 - 1.5 GeV | |
Circumference | 118.731m | |
Lattice | DBA + Inverse Bending mag. | |
Bending Magnets | Number of Bends 12 | |
Radius of curvature 3.2168m | ||
Field Strength 1.035 T (@1GeV) | ||
Inberese Bending Magnets | Number of Inv.Bends 6 | |
Radius of curvature -3.2168m | ||
Field Strength 1.035 T (@1GeV) | ||
Qadrupole magnets | ||
          Arc | 2 families (16) | |
          Short Straight Section | 2 families (24) | |
          Long Straight Section | 2 families (12) | |
Length of Long straight section | ||
          Short Straight Section | 2.6 m | |
          Long Straight Section | 14 m | |
&beta function | Horizontal / Vertical | |
          Short Straight Section | 8.61 m / 8.66 m | |
          Long Straight Section | 1.49 m / 8.05 m | |
          0 degree emission point of bend | 3.32 m / 24.49 m | |
          10 degree emission point of bend | 1.91 m / 26.88 m | |
&alpha function | Horizontal / vertical | |
          Short Straight Section | 0 / 0 | |
          Long Straight Section | 0 / 0 | |
          0 degree emission point of bend | 0.78 / 2.74 | |
          10 degree emission point of bend      | -0.051136364 | |
&gamma function | Horizontal / vertical | |
          Short Straight Section | 0.12 m-1 / 0.12 m-1 | |
          Long Straight Section | 0.67 m-1 / 0.12 m-1 | |
          0 degree emission point of bend | 0.48 m-1 / 0.34 m-1 | |
          10 degree emission point of bend | 0.54 m-1 / 0.50 m-1 | |
dispersion | ||
          Short Straight Section | 0 m | |
          Long Straight Section | 0 m | |
          0 degree emission point of bend | 0.03 m | |
          10 degree emission point of bend | 0.16 m | |
Betatron tunes | Horizontal: 6.30, vertical:2.23 | |
Energy spread | 0.04 % (@1.0GeV) | |
Momentum Compaction Factor | Normal operation: 1.3x10-3 | |
chromaticity | Horizontal:2.9, Vertical:5.6 | |
Stored current | ||
          MAX. | 500 mA | |
          1.0GeV user time | 220mA (Top-up) | |
          1.5GeV user time | < 400mA (decay) | |
Natural Emittance | 37 nmrad (@1.0GeV) | |
X-Y coupling | 1% | |
Revolution frequency / period | 2.53 MHz / 396 ns | |
RF frequency | 499.955 MHz | |
Harmonic number | 198 | |
RF voltage (Max.) | 500 kV | |
Radiation loss per turn | 33.4 keV (@1GeV) | |
Critical energy / Critical wavelength | 0.7 keV / 1.8nm (@1GeV) | |
Beam lifetime | 12 hrs (@1GeV, 100mA) | |
18 hrs (@1.5GeV, 100mA) | ||
Bunch length (&sigma) | 33ps (Normal operation) | |
2.4ps (Low &alpha operation) | ||
Electron beam size (&sigma) | Horizontal / vertical (@1GeV) | |
          Short Straight Section | 5.6X10-4 m / 5.9X10-5 m | |
          Long Straight Section | 2.3X10-4 m / 5.7X10-5 m | |
          0 degree emission point of bend | 1.8X10-4 m / 9.2X10-5 m | |
          10 degree emission point of bend | 1.6X10-4 m / 8.5X10-5 m | |
divergence | Horizontal / Vertical (@1GeV) | |
          Short Straight Section | 6.6X10-5 / 6.8X10-6 | |
          Long Straight Section | 1.6X10-4 / 7.0X10-6 | |
          0 degree emission point of bend | 2.1X10-4 / 4.4X10-6 | |
          10 degree emission point of bend | 2.3X10-4 / 4.7X10-6 | |
Stability of COD (with auto COD corr.) |
Horizontal:under 10 um, vertical:under 10 um |
|
Vacuum Pressure | ||
          Off beam | 10-9Pa ~ 10-8Pa | |
          On beam | 10-8Pa ~ 10-6Pa |

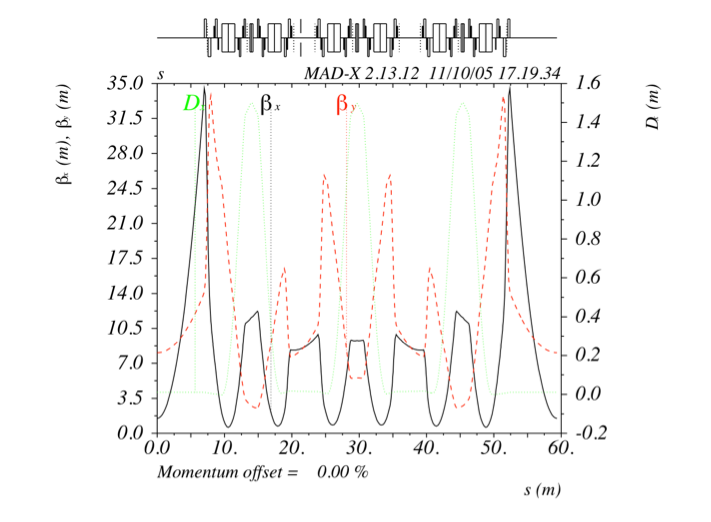

Betatron and dispersion functions along a half circumference of NewSUBARU storage ring.
